# Basic Parameters

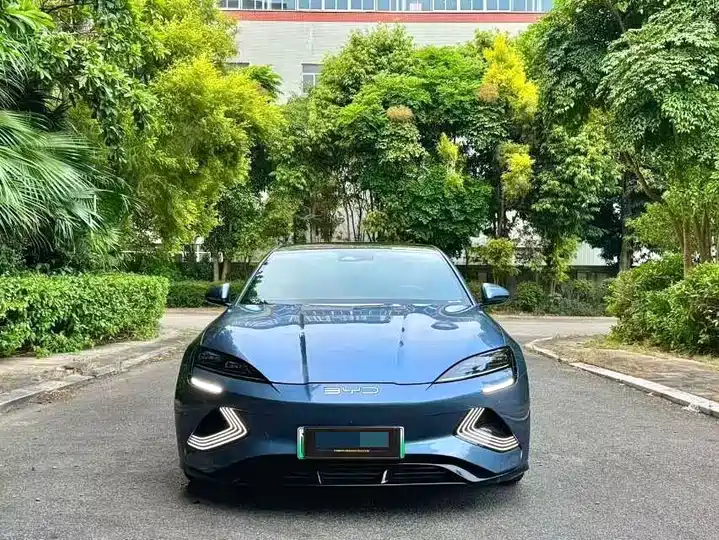

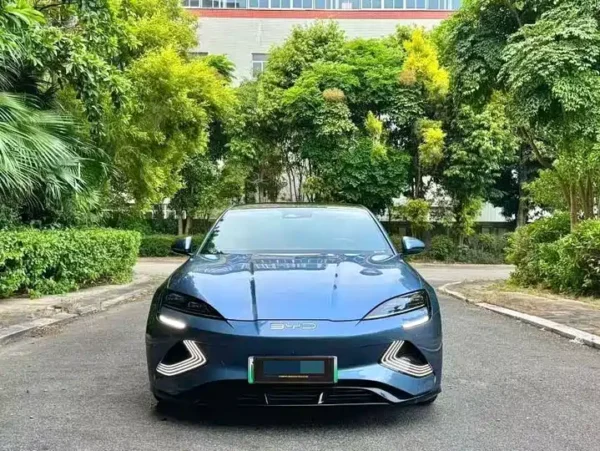

Model Name: BYD Seal 2023 Champion Edition 550km Elite
Manufacturer: BYD Auto
Vehicle Class: Mid-size Car
Energy Type: Pure Electric
Launch Date: May 2023
CLTC Pure Electric Range (km): 550
Fast Charging Time (h): N/A
Slow Charging Time (h): N/A
Target Charging Percentage: 80%
Max Total Power (kW): 150
Max Total Torque (N·m): 310
Total Motor Horsepower (Ps): 204
Dimensions (L*W*H, mm): 4800*1875*1460
Body Structure: 4-door 5-seat Sedan
Top Speed (km/h): 180
Official 0-100km/h Acceleration (s): 7.5
Equivalent Fuel Consumption from Electricity (L/100km): 1.43
Vehicle Warranty: 6 years or 150,000 km
Exclusive Warranty for First Owner: N/A

## Body
Length (mm): 4800
Width (mm): 1875
Height (mm): 1460
Wheelbase (mm): 2920
Front Track (mm): 1620
Rear Track (mm): 1625
Approach Angle (°): 13
Departure Angle (°): 14
Minimum Turning Radius (m): 5.7
Body Style: Sedan
Door Opening Type: Conventional Doors
Number of Doors: 4
Number of Seats: 5
Trunk Volume (L): N/A
Drag Coefficient (Cd): 0.219
Curb Weight (kg): 1885
Gross Vehicle Weight (kg): 2260

## Electric Motor
Motor Type: Permanent Magnet Synchronous
Total Motor Power (kW): 150
Total Motor Power (Ps): 204
Total Motor Torque (N·m): 310
Rear Motor Max Power (kW): 150
Rear Motor Max Torque (N·m): 310
Number of Drive Motors: Single Motor
Motor Layout: Rear-mounted
Battery Type: Lithium Iron Phosphate Battery
Cell Brand: FinDreams Battery
Battery Cooling: Liquid Cooling
CLTC Pure Electric Range (km): 550
Battery Capacity (kWh): 61.4
Power Consumption per 100km (kWh/100km): 12.6
Battery Pack Warranty: Unlimited years & mileage for the first owner (subject to official exemption clauses)
Fast Charging Function: Supported
Max Fast Charging Power (kW): 110
Fast Charging Time (h): N/A
Slow Charging Time (h): N/A
Charging Target Percentage (%): 80

## Transmission
Gear Count: 1
Transmission Type: Fixed Gear Ratio Transmission
Abbreviation: EV Single-Speed Transmission

## Chassis & Steering
Drive Type: Rear-Wheel Drive
AWD System: Not Equipped
Central Differential: N/A
Front Suspension: Double Wishbone Independent Suspension
Rear Suspension: 5-Link Independent Suspension
Power Steering: Electric Power Steering
Body Structure: Load-bearing Body

## Wheels & Brakes
Front Brake Type: Ventilated Disc
Rear Brake Type: Ventilated Disc
Parking Brake: Electronic Parking Brake
Front Tire Spec: 225/50 R18
Rear Tire Spec: 225/50 R18
Spare Tire: Tire Repair Kit Only

## Passive Safety
Driver & Front Passenger Airbags: Standard
Front & Rear Side Airbags: Standard
Front & Rear Curtain Airbags: Standard
Driver Knee Airbag: Standard

## Active Safety
ABS Anti-lock Braking System: Standard
Electronic Brake Force Distribution (EBD): Standard
Brake Assist (EBA): Standard
Traction Control (TCS): Standard
Electronic Stability Control (ESC): Standard
Tire Pressure Monitoring: Digital Pressure Display
Full Occupant Seatbelt Reminder: Standard
ISOFIX Child Seat Anchors: Standard
Lane Departure Warning: Standard
Active Brake System: Standard
Driver Fatigue Reminder: Not Available
Door Opening Warning (DOW): Standard
Forward Collision Warning: Standard
Rear Collision Warning: Standard
Low-Speed Pedestrian Warning: Standard
Built-in Driving Recorder: Standard
Roadside Emergency Call: Standard

## Driving Control
Driving Modes: Sport / Eco / Standard Comfort / Snow
Energy Recovery System: Standard
Auto Hold: Standard
Hill Start Assist: Standard

## Driving Hardware
Front & Rear Parking Radars: Standard
360° Panoramic Camera: Standard
Transparent Chassis / 540° View: Standard
Camera Count: 5 Units
Interior Camera Count: 1 Unit
Ultrasonic Radar Count: 6 Units
Millimeter Wave Radar Count: 3 Units

## Driving Assistance Functions
Cruise Control: Full-Speed Adaptive Cruise
ADAS Level: L2
Rear Cross-Traffic Alert: Standard
Satellite Navigation (Amap): Standard
Real-time Traffic Display: Standard
Lane Change Assist: Standard
Lane Keeping Assist: Standard
Lane Centering Control: Standard
Traffic Sign Recognition: Standard
Auto Parking Assist: Not Available
Remote Controlled Parking: Standard

## Exterior & Anti-theft
Alloy Wheels: Standard
Central Door Lock: Standard
Key Types: Remote Key / Bluetooth Key / NFC RFID Key
Keyless Start: Standard
Front Door Keyless Entry: Standard
Hidden Electric Door Handles: Standard
Active Aerodynamic Grille: Standard
Remote Vehicle Start: Standard
Battery Preheating: Standard
V2L External Discharge: Standard

## Exterior Lights
Low & High Beam: LED
Light Feature: Matrix LED
LED Daytime Running Lights: Standard
Adaptive High/Low Beam: Standard
Auto Headlights: Standard
Front Fog Lights: Not Available
Headlight Rain & Fog Mode: Standard
Adjustable Headlight Height: Standard
Headlight Delay-off Function: Standard

## Sunroof & Windows

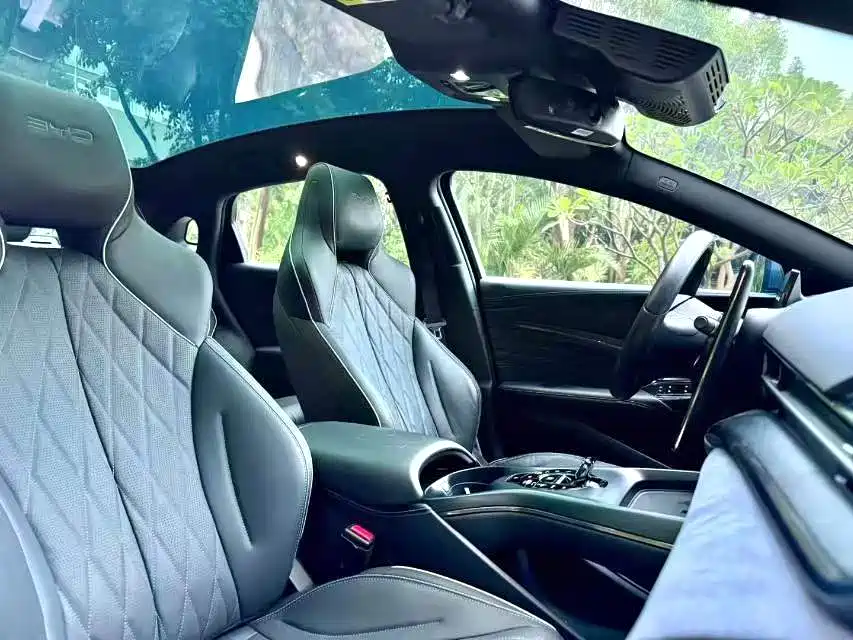

Sunroof Type: Non-opening Panoramic Sunroof
Light Sensing Sky Roof: Optional
Front & Rear Power Windows: Standard
One-touch Auto Window Lift for All Windows: Standard
Window Anti-pinch Function: Standard
Multi-layer Sound Insulation Side Windows: Standard for Front Doors
Driver & Passenger Vanity Mirror with Light: Standard
Rear Windshield Wiper: Not Available
Rain-sensing Wipers: Standard

## Side Mirrors
Side Mirror Functions: Electric Adjustment / Electric Folding / Heating / Auto Fold on Lock

## Connectivity & Intelligent System

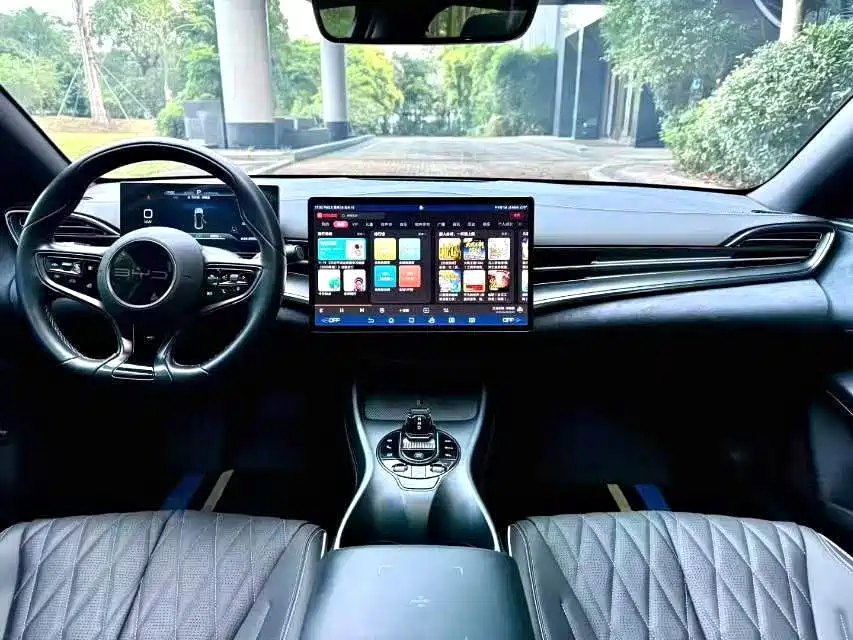

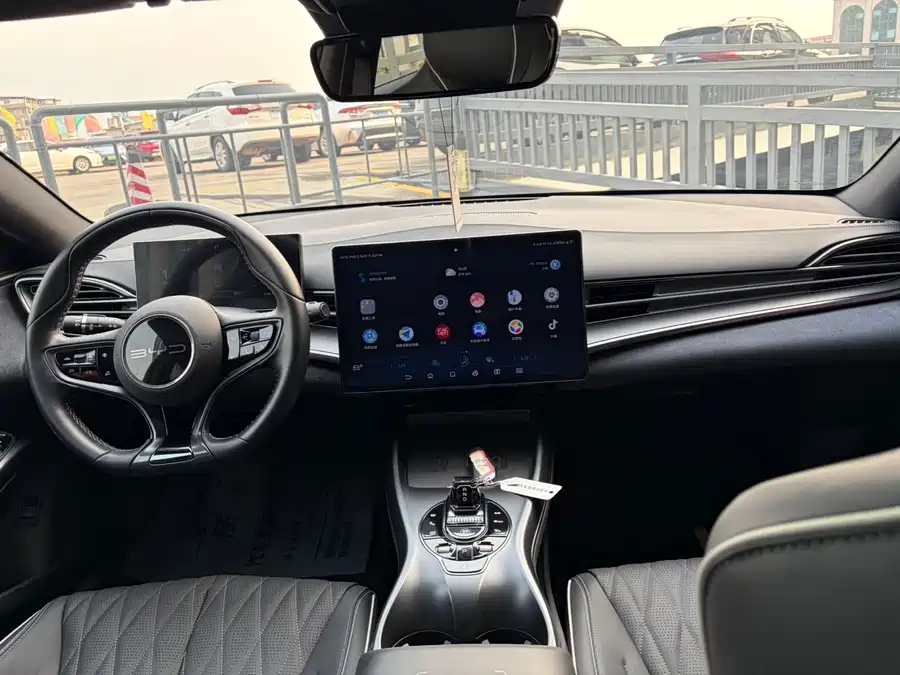

15.6-inch Rotatable LCD Touch Central Screen: Standard
Bluetooth & Car Phone: Standard
Mobile Phone Interconnection: Not Supported
Voice Control Coverage: Multimedia / Navigation / Phone / Air Conditioner
Voice Wake Word: Hello, Di
Wake-word Free Voice Control: Standard
Single-zone Voice Recognition: Standard
Built-in App Store: Standard
DiLink Intelligent Cockpit System: Standard
Vehicle Network: 5G
OTA Upgrade: Standard
Wi-Fi Hotspot: Standard
Mobile APP Remote Control: Door Lock / Vehicle Start / Charging Management / Air Conditioner / Vehicle Diagnosis / Charging Station Query / Maintenance Reservation

## Steering Wheel & Interior Rearview Mirror
Genuine Leather Steering Wheel: Standard
Manual Up/Down & Telescopic Steering Adjustment: Standard
Electronic Column Shift Lever: Standard
Multi-function Steering Wheel: Standard
Heated Steering Wheel: Not Available
Steering Wheel Memory: Not Available
Color Digital Instrument Cluster: Standard

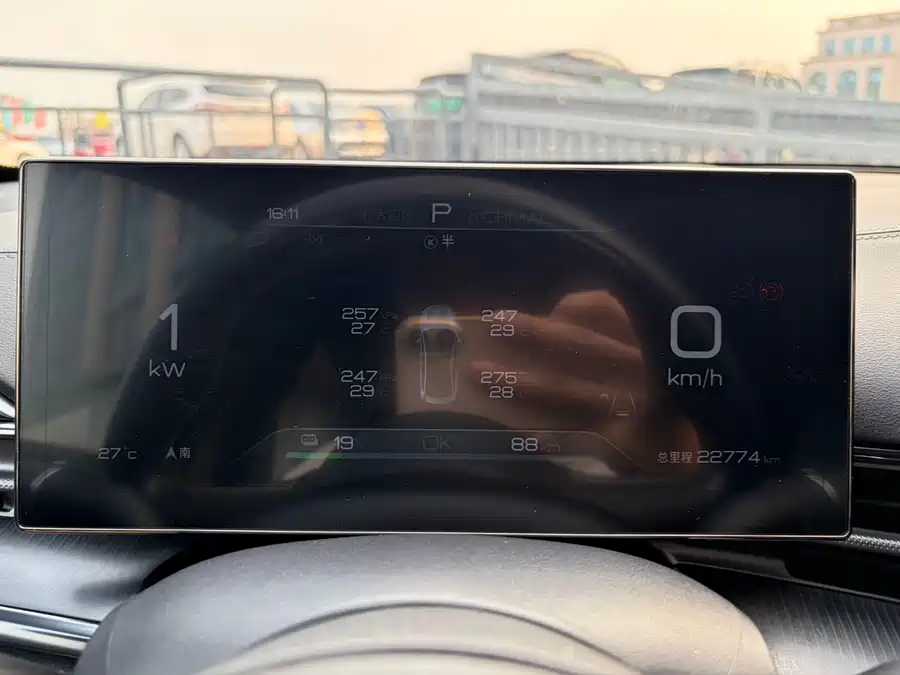

10.25-inch Full LCD Instrument Panel: Standard
LCD Instrument Screen: Standard
Auto Anti-glare Interior Rearview Mirror: Standard
Built-in ETC Device: Standard

## Interior Charging
Ports: USB / SD Card
2 Front + 2 Rear Charging Ports (Max 60W): Standard
Front Wireless Phone Charging: Standard
12V Trunk Power Outlet: Standard

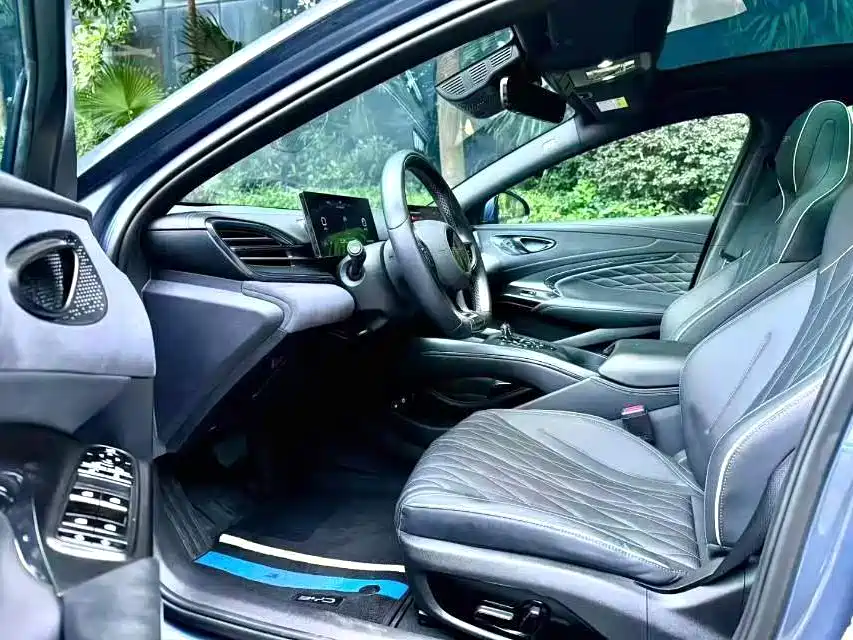

## Seat Configuration
Seat Material: Artificial Leather
Driver Seat Adjustment: Forward/Backward / Backrest Tilt / 4-way Height Adjustment
Passenger Seat Adjustment: Forward/Backward / Backrest Tilt / 2-way Height Adjustment
Power-adjustable Driver & Passenger Seats: Standard
Front Seat Heating/Ventilation/Massage: Not Available
Driver Seat Memory: Not Available
Rear Seat Control from Front Passenger Side: Not Available
Second Row Adjustable Functions: Not Available
Split-folding Rear Seats: Standard
Front & Rear Central Armrest: Standard
Rear Cup Holders: Standard

## Audio & Ambient Light
Speaker Brand: No Brand Label
Speaker Count: 10 Units
Touch Reading Lights: Standard
Interior Ambient Light: Not Available

## Air Conditioning & Refrigerator
Automatic Air Conditioner: Standard
Heat Pump AC: Standard
Independent Rear Air Conditioner: Not Available
Rear Air Vents: Standard
Multi-zone Temperature Control: Standard
Built-in Air Purifier: Standard
PM2.5 Cabin Filter: Standard
Negative Ion Generator: Standard
Air Quality Monitoring: Standard
On-board Refrigerator: Not Equipped
